Kitchen hoods

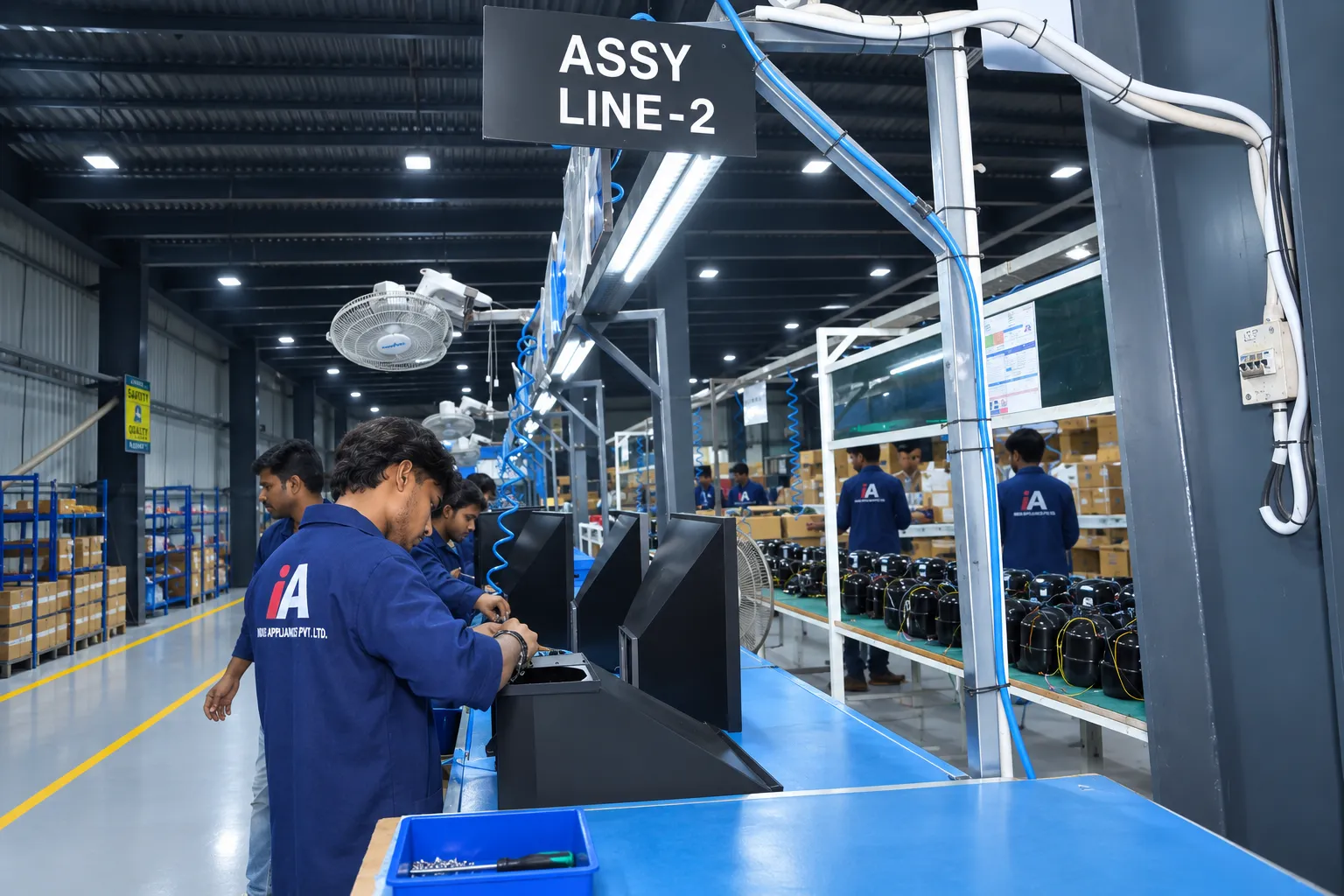

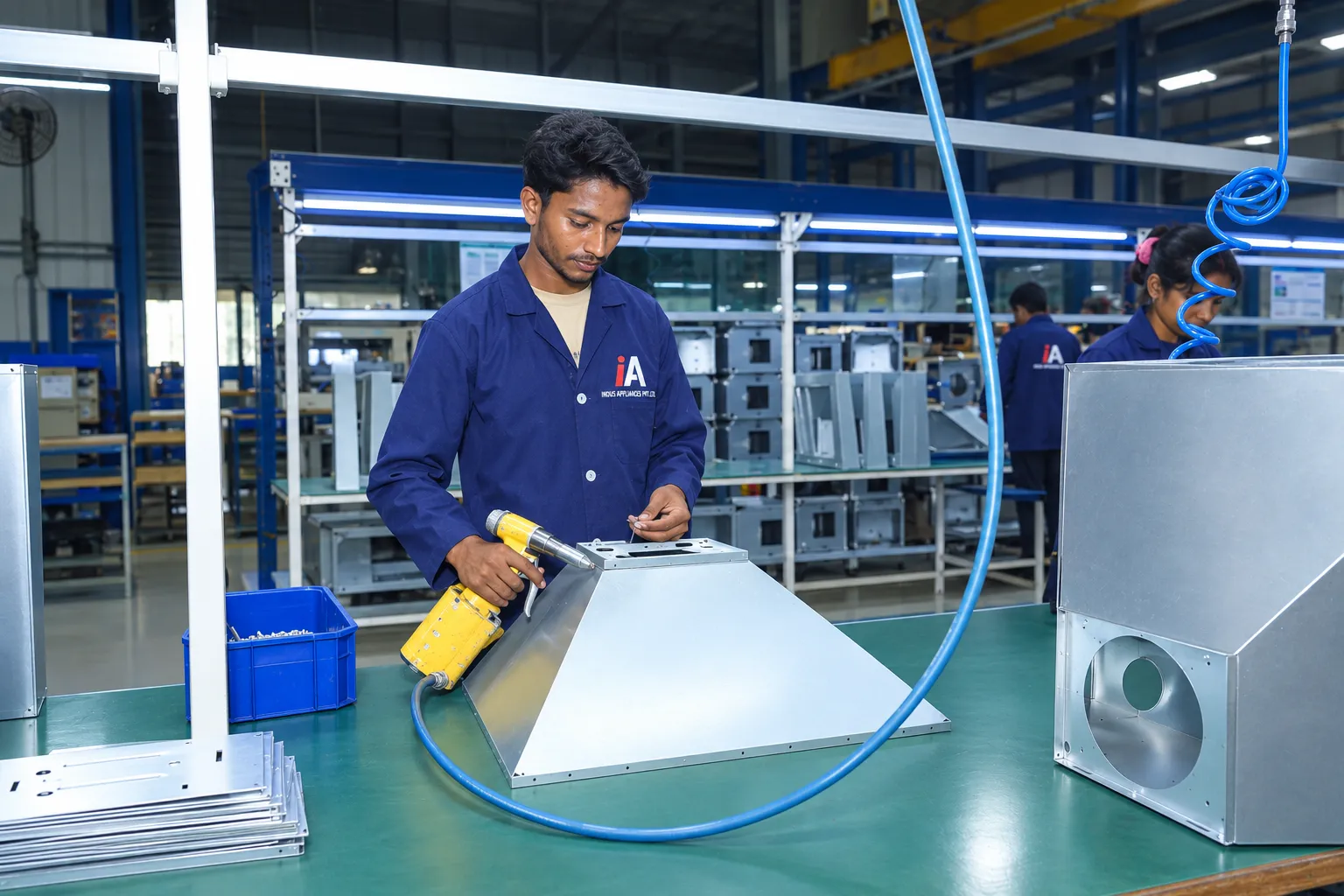

Nine hood families, cut, bent, wound and assembled under one roof.

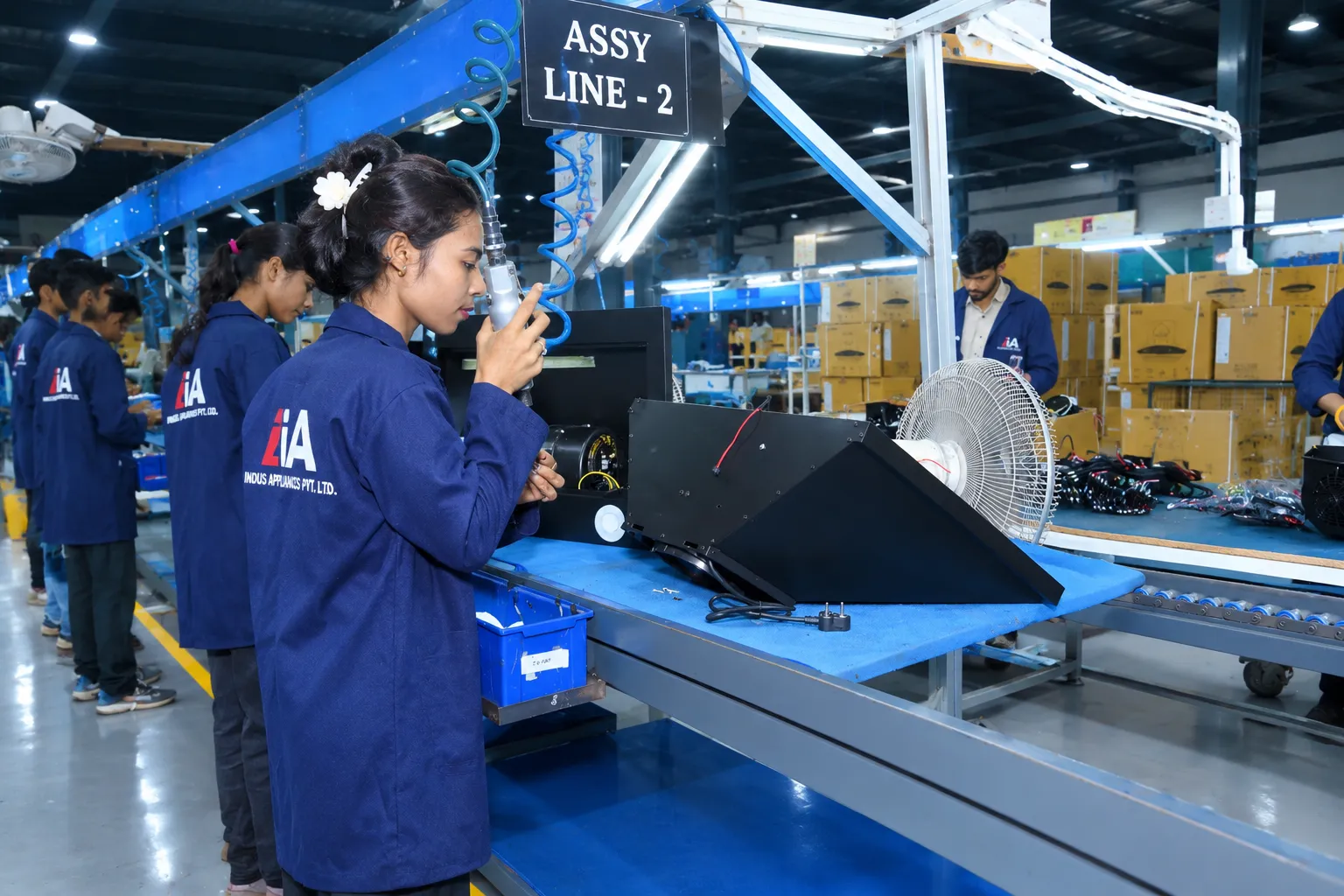

From the sheet that becomes the canopy to the BLDC motor inside it, every part of an Indus hood is made on the Bahadurgarh floor. Pyramid to filterless, 60 to 90 centimetres, up to 1,600 cubic metres an hour.

400,000 units / year

400,000 units a year across nine families
130 W BLDC motors with ten speeds and turbo, 45 to 55 dBA
Heat auto-clean, motion and touch control, filterless designs

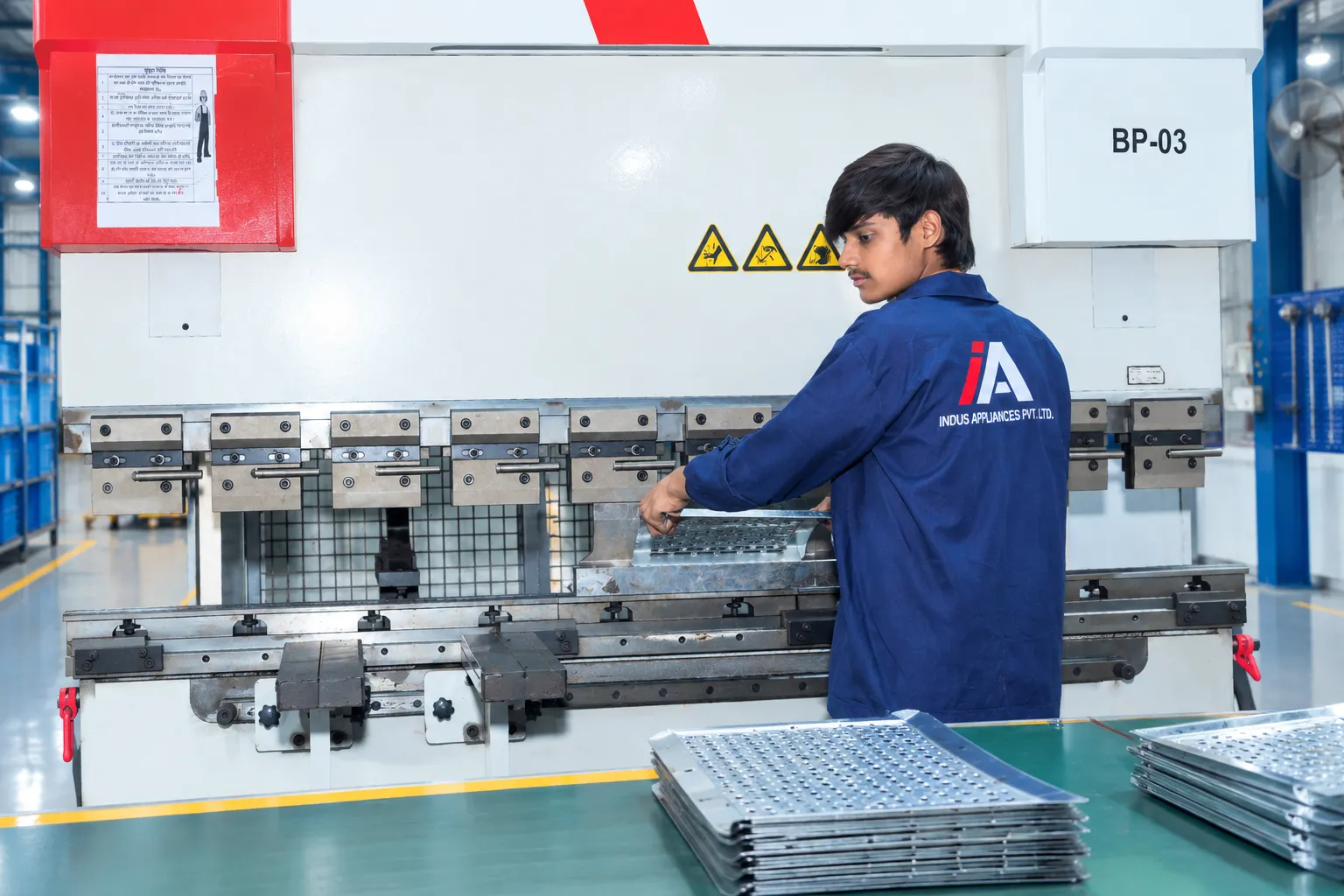

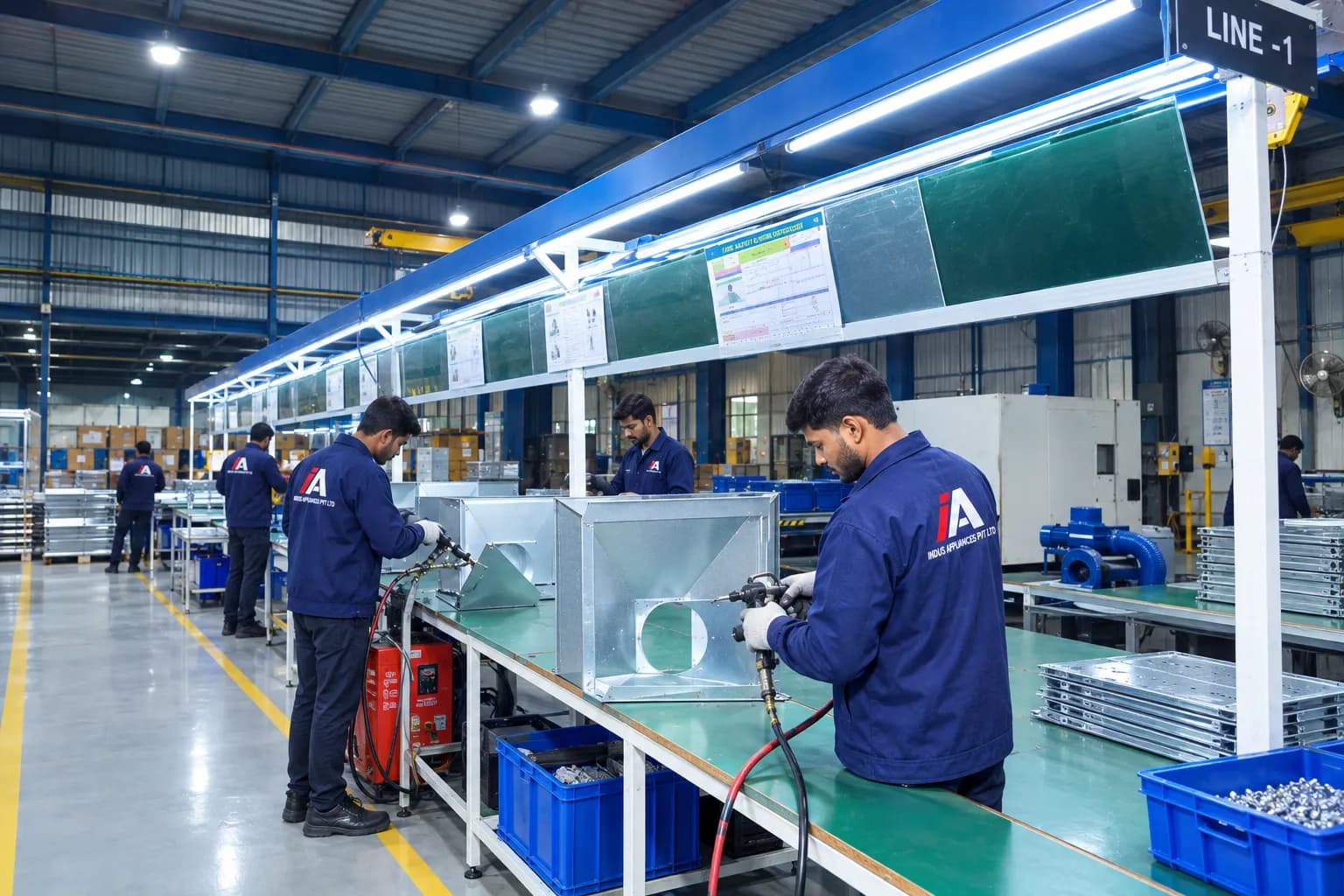

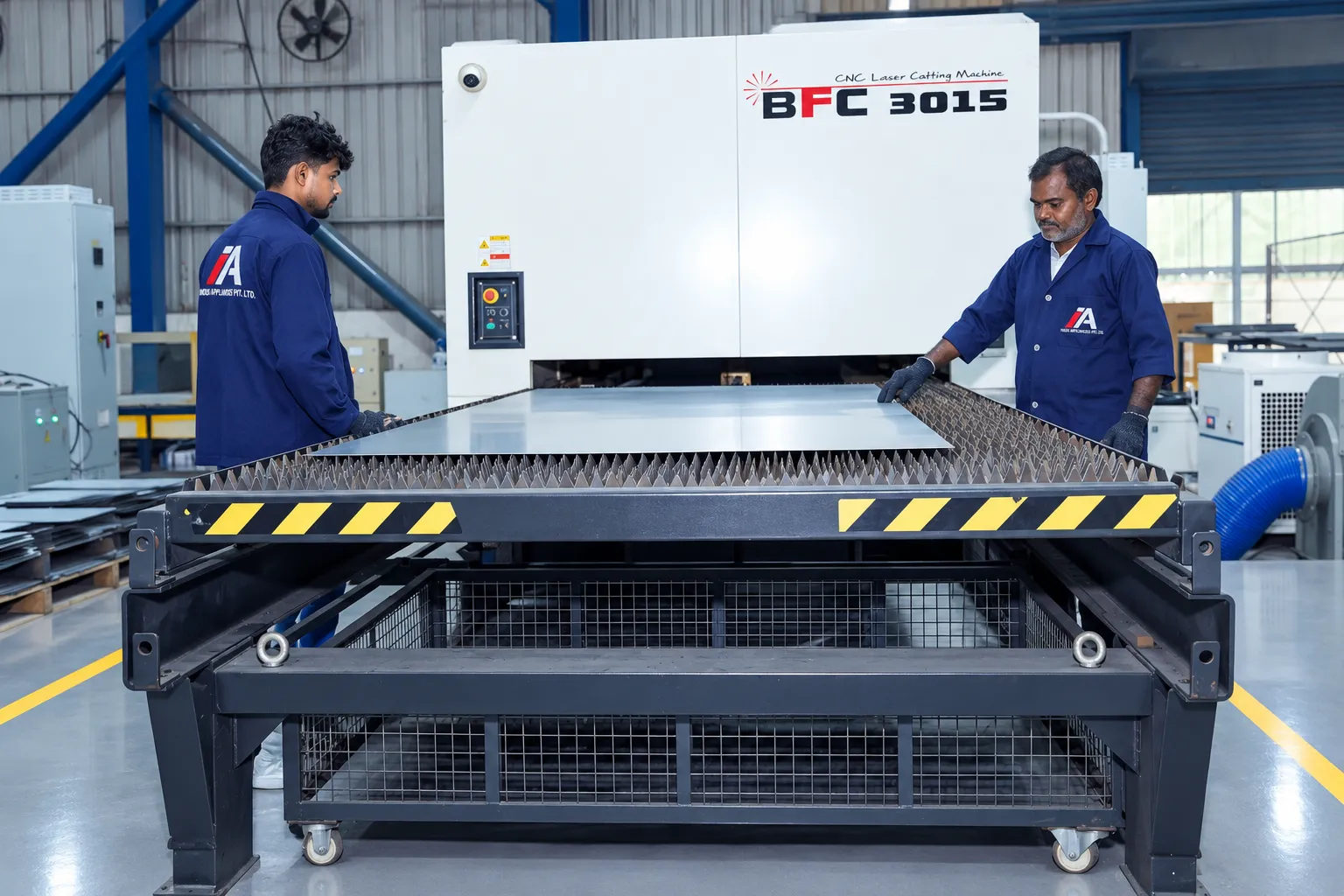

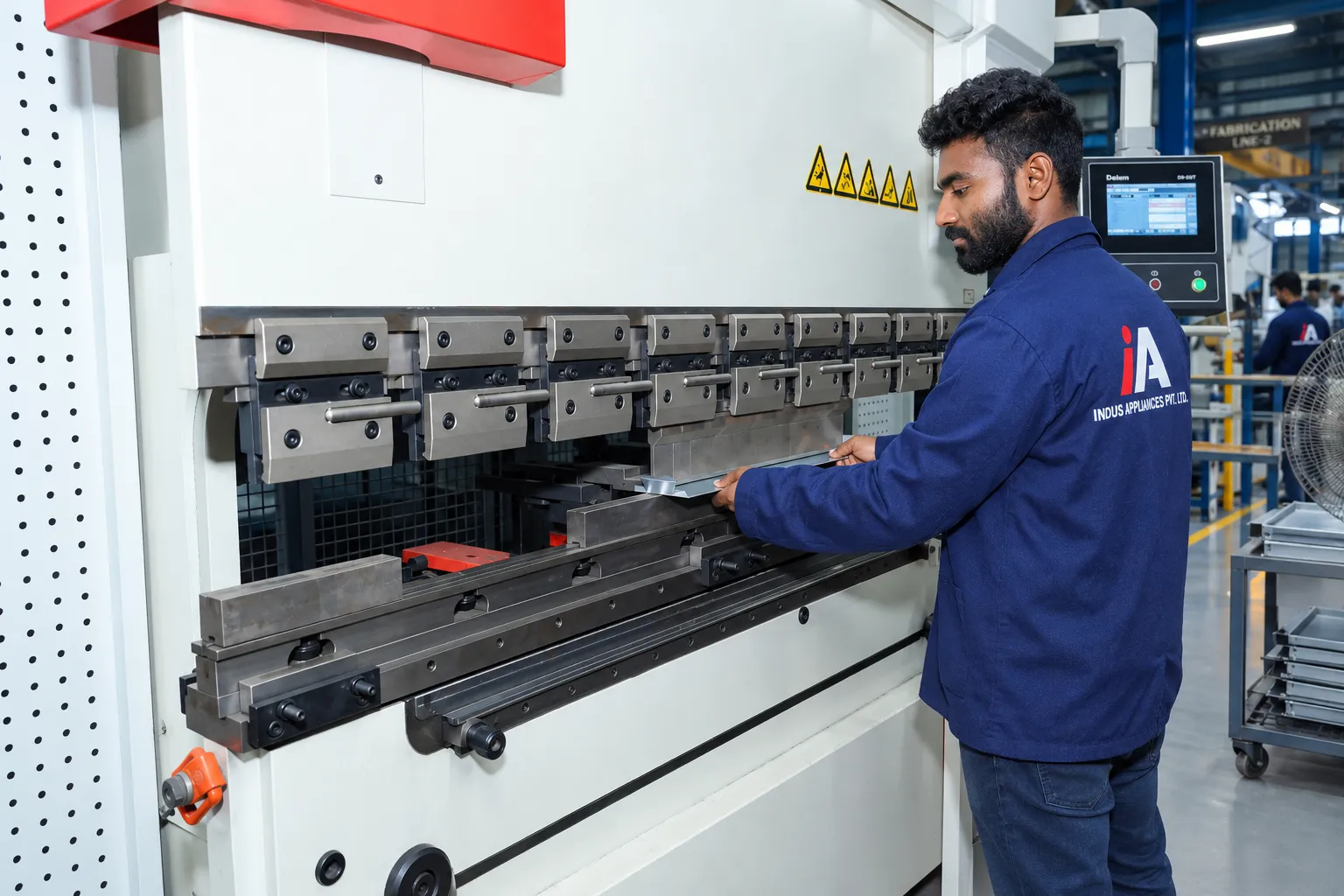

Sheet laser cutting, CNC bending, turret punching and motors all in-house

Nine families

Most families come in AC and BLDC versions. Suction figures are at the inlet, within ten percent.

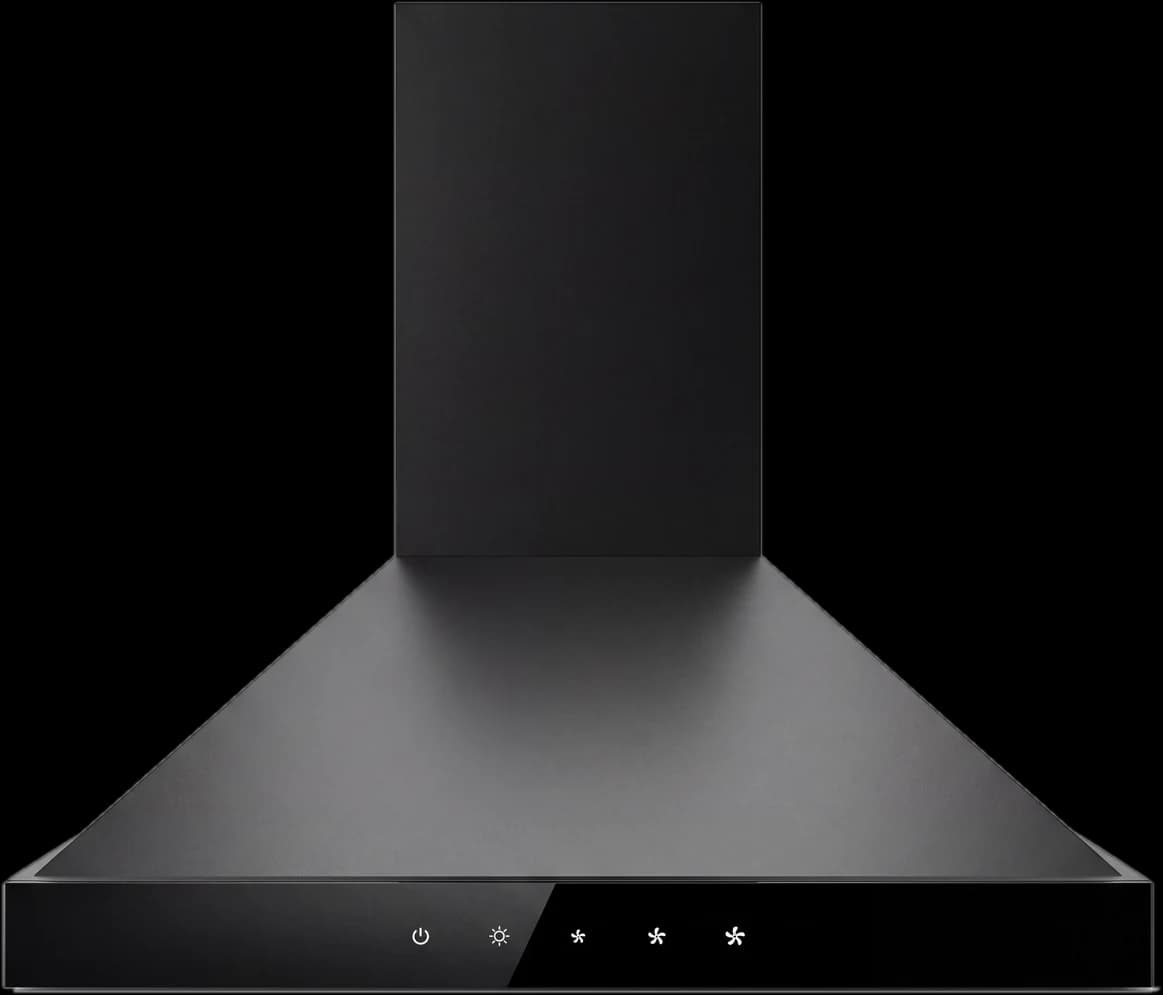

Pyramid
60 cm
- 90 W AC motor
- 1,000 m³/h suction
- Push button or motion sensor
GP 120 GSM 0.5 mm sheet · black powder coat · baffle or cassette filter

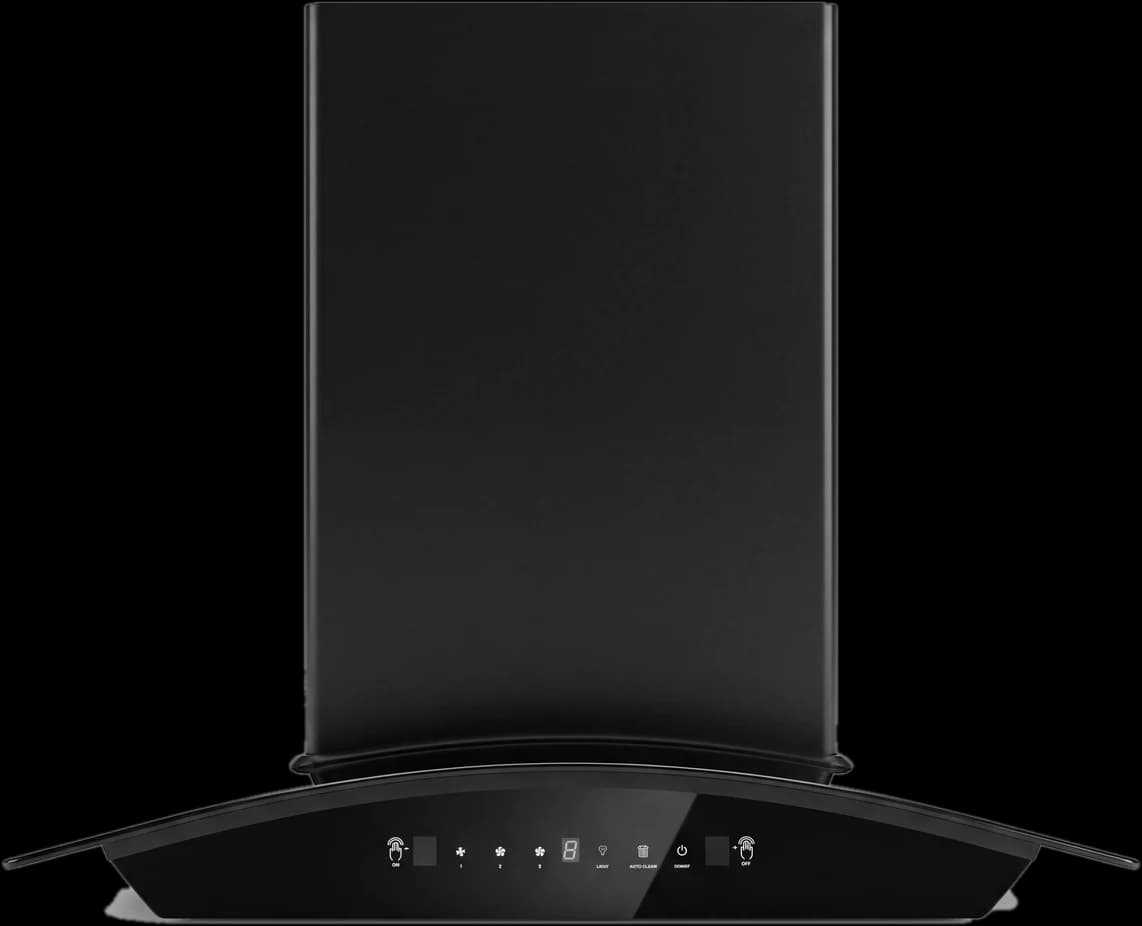

Curve
60, 75 and 90 cm
- 200 W AC or 130 W BLDC
- 1,300 or 1,600 m³/h
- Curved toughened glass
GP 120 GSM 0.5 mm sheet · 4 mm toughened front glass · perforated filter

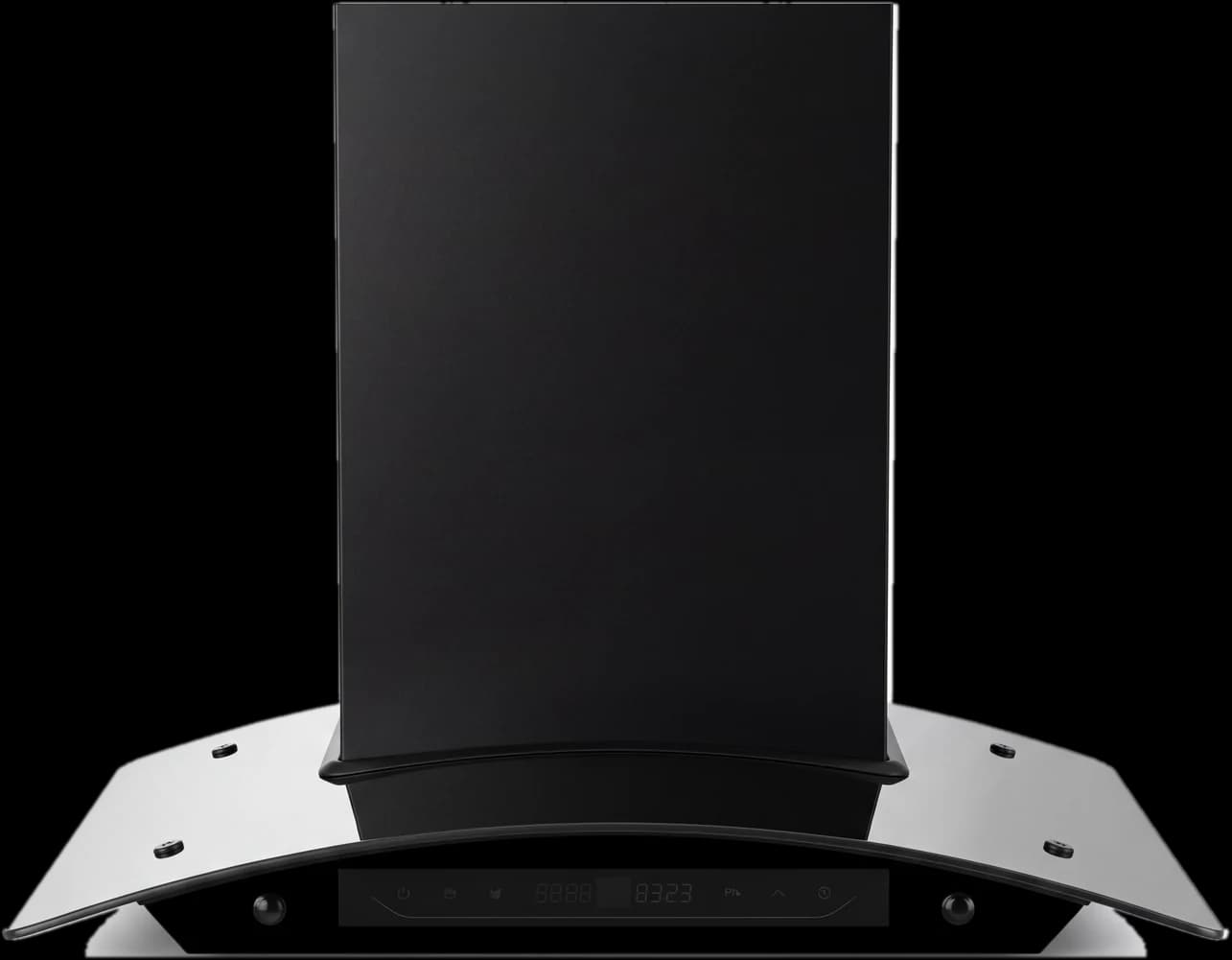

Curve plane, auto-clean
60, 75 and 90 cm
- 200 W AC or 130 W BLDC
- Heat auto-clean, 60 W strip
- Motion and touch control
GP 120 GSM 0.5 mm sheet · 6 mm top and 4 mm front toughened glass · metal housing

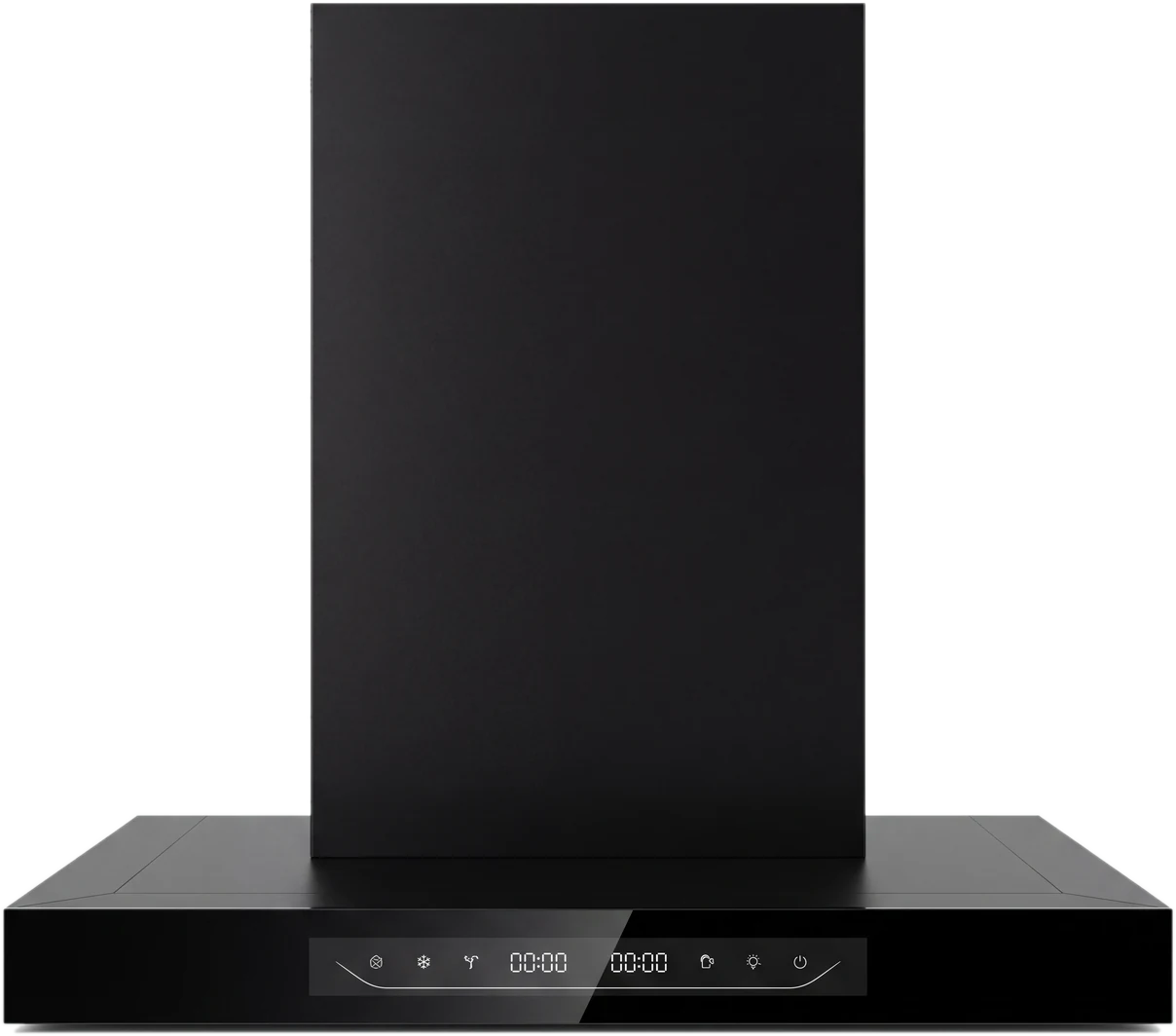

T shape
60, 75 and 90 cm
- 200 W AC or 130 W BLDC
- 1,300 or 1,600 m³/h
- Digital display
GP 120 GSM 0.5 mm sheet · 4 mm toughened front glass · perforated filter

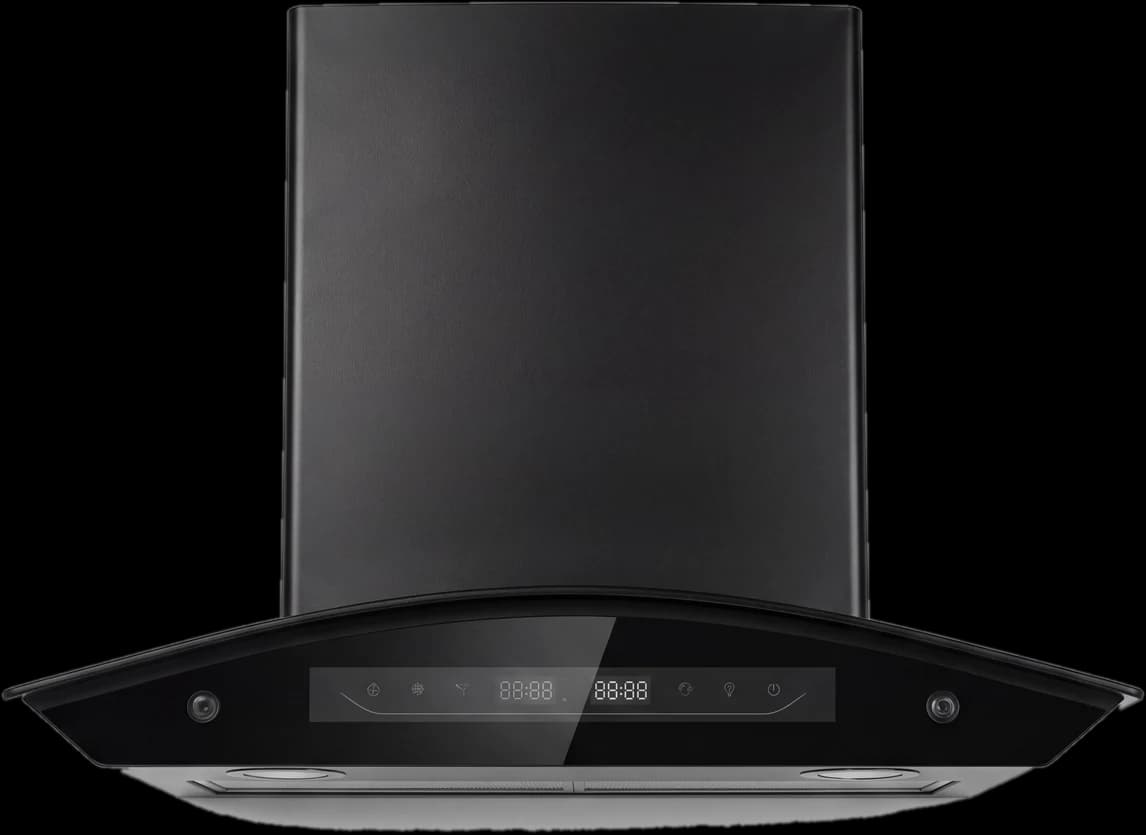

Draw, 60 cm
60 cm
- 130 W BLDC
- 1,600 m³/h, ten speeds and turbo
- 45 to 55 dBA

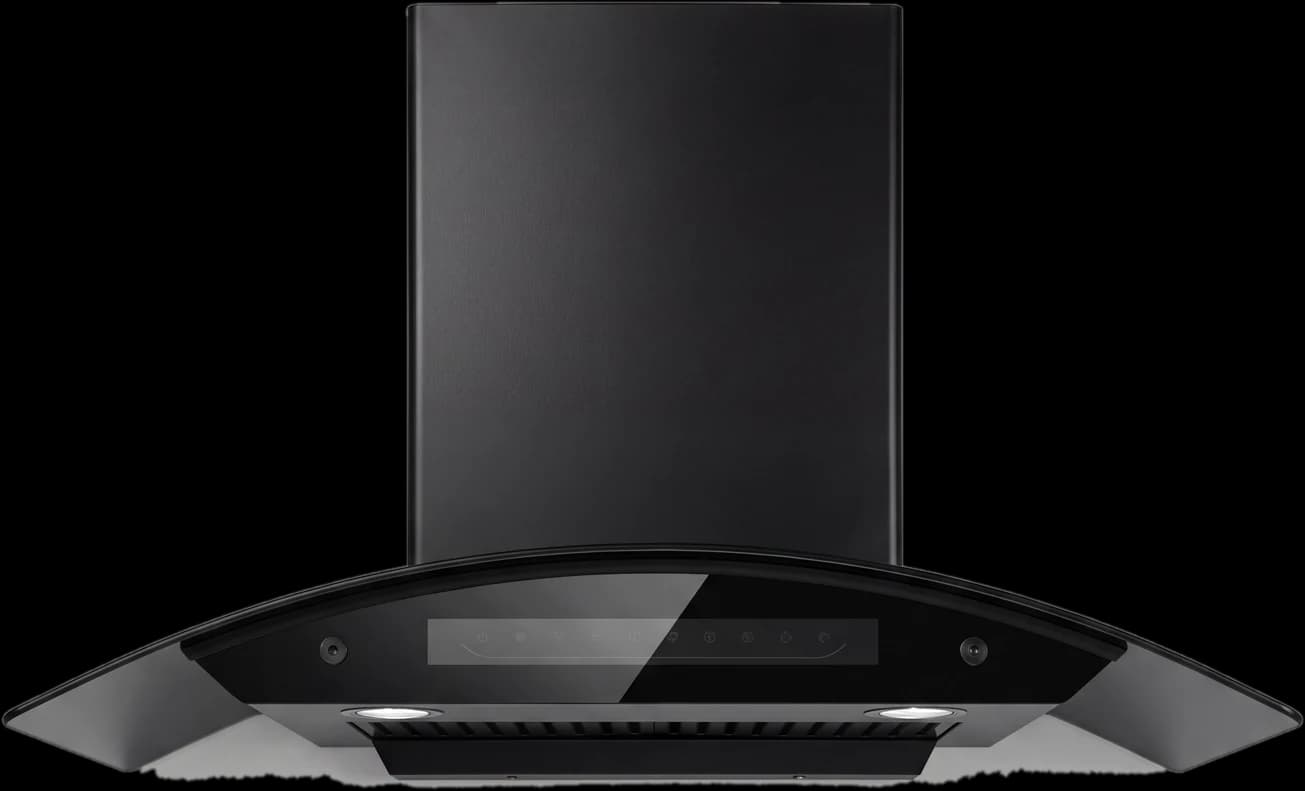

Draw, 90 cm
90 cm
- 130 W BLDC
- 1,600 m³/h
- Matte black or steel grey

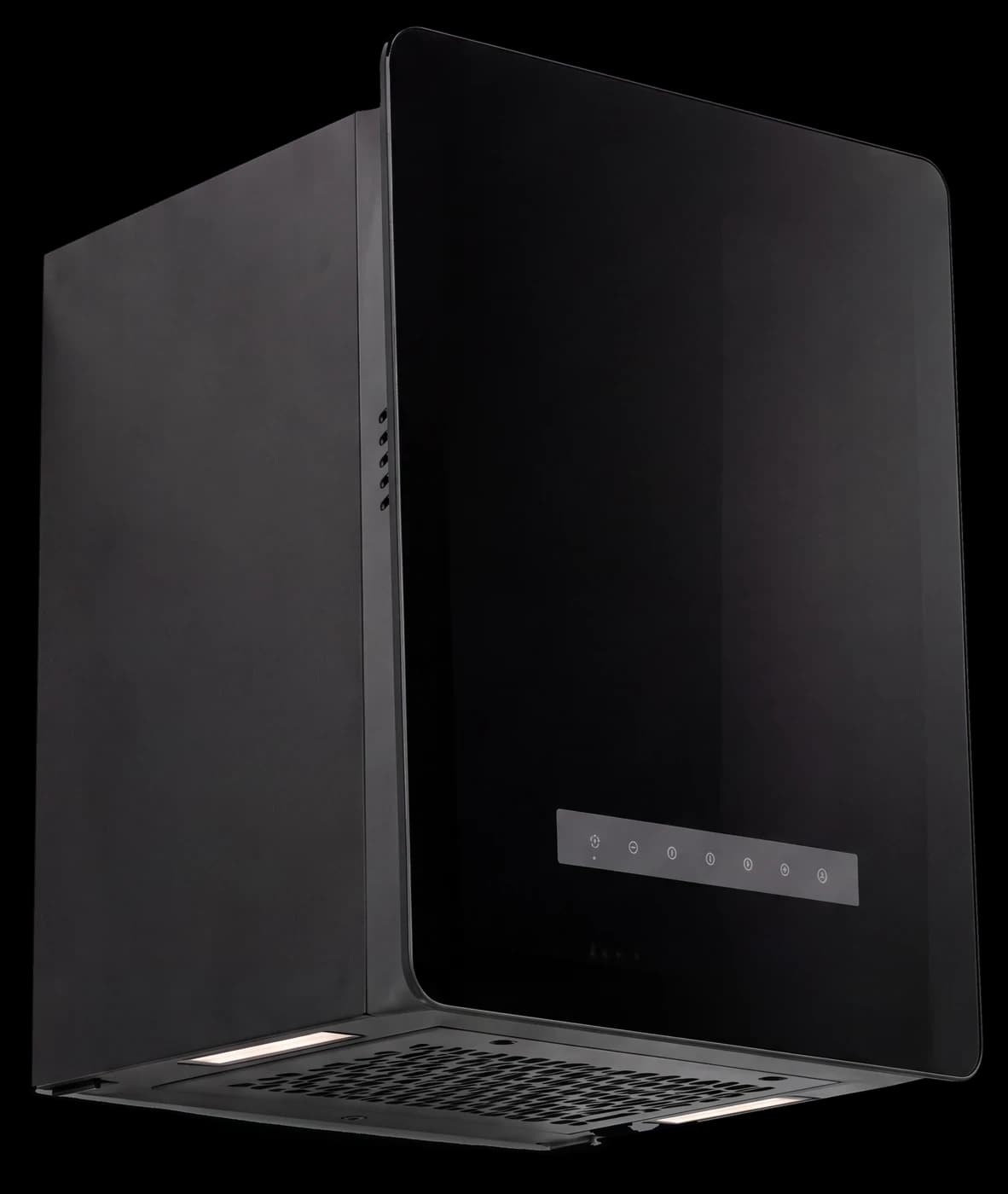

Cube
60 cm
- 130 W BLDC or 200 W induction
- 1,500 m³/h
- Auto-clean, 58 dB

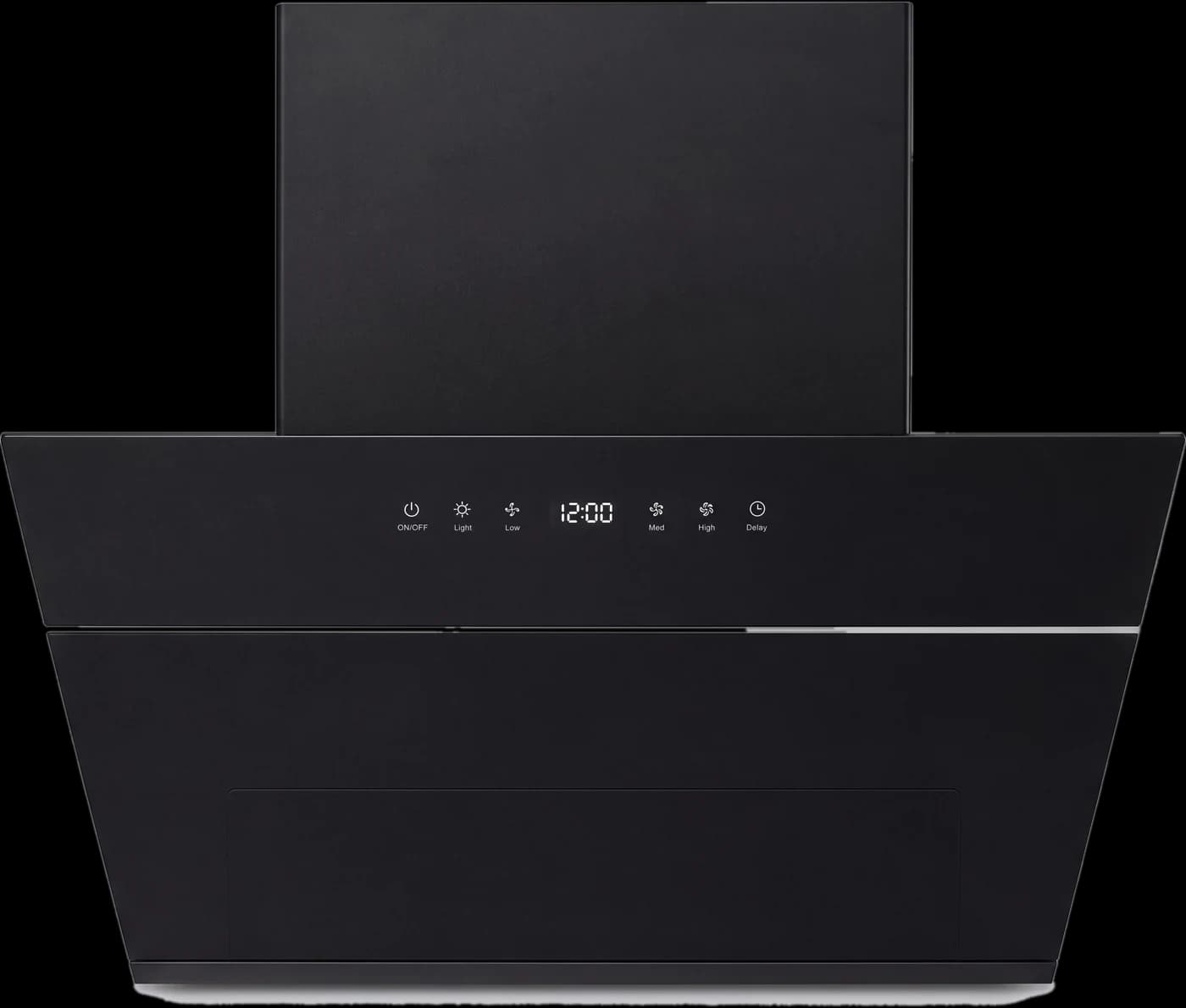

Inclined
60 cm
- 200 W AC
- 1,200 m³/h
- Touchless motion control

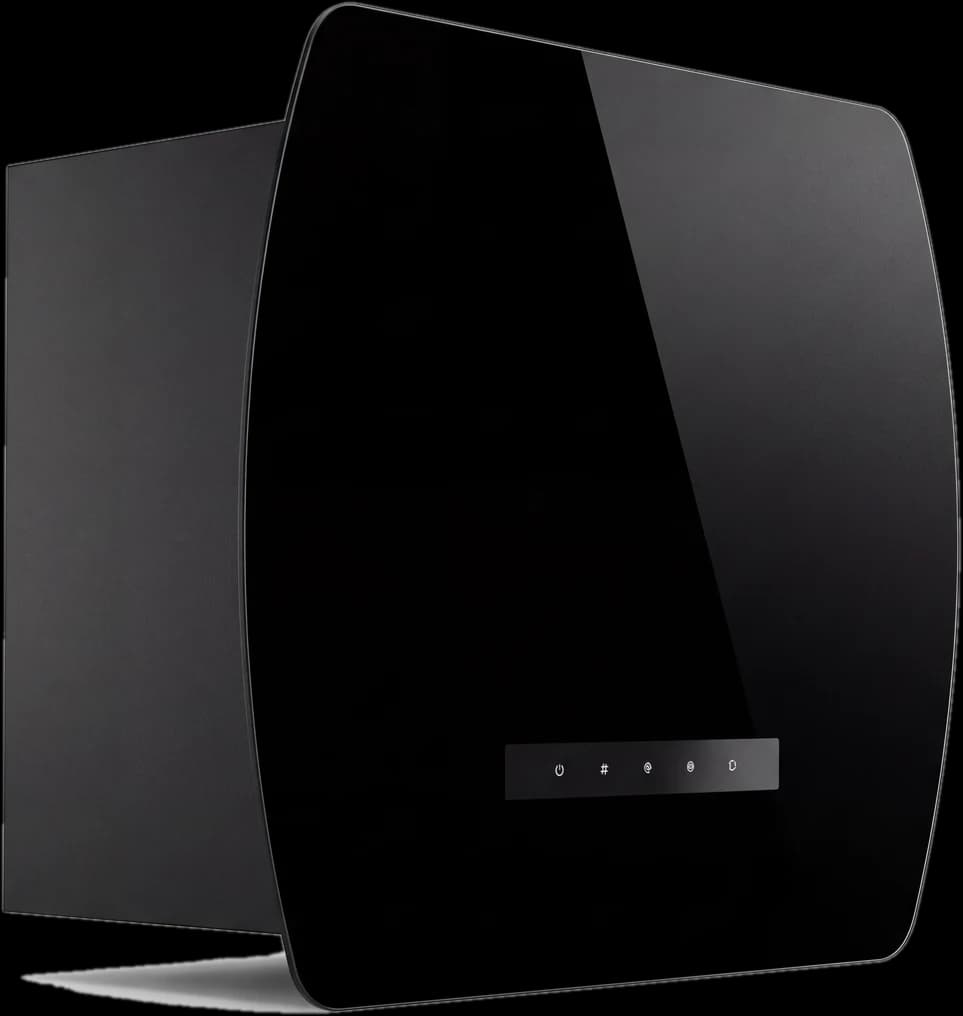

Oval, ductless
75 cm
- 130 W BLDC
- Filterless and ductless
- Wall mounted, no chimney

Families compared

Family	Sizes	Motor	Suction	Speeds	Noise
Pyramid	60 cm	90 W AC	1,000 m³/h	3	55–65 dBA
Curve	60 / 75 / 90 cm	200 W AC · 130 W BLDC	1,300 · 1,600 m³/h	3 · 10 + turbo	55–65 · 45–55 dBA
T shape	60 / 75 / 90 cm	200 W AC · 130 W BLDC	1,300 · 1,600 m³/h	3 · 10 + turbo	55–65 · 45–55 dBA
Draw	60 / 90 cm	200 W AC · 130 W BLDC	1,400 · 1,600 m³/h	3 · 10 + turbo	55–65 · 45–55 dBA
Cube	60 cm	130 W BLDC · 200 W induction	1,500 · 1,200 m³/h	—	58 dB
Inclined	60 cm	200 W AC	1,200 m³/h	—	58 dB
Oval ductless	75 cm	130 W BLDC	Filterless	—	—
